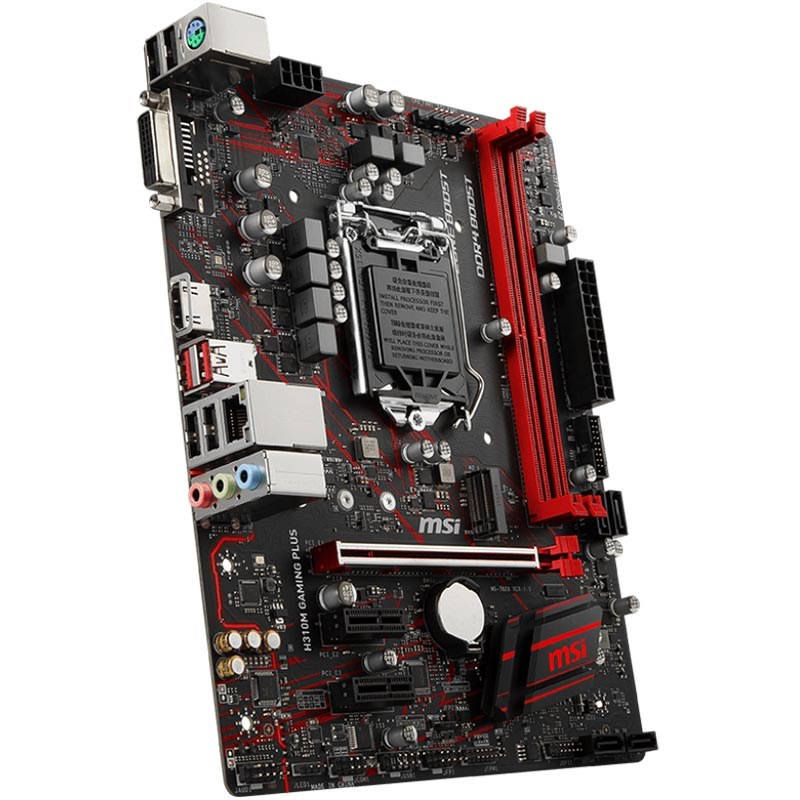

MSI H310M GAMING PLUS DDR4 M.2 HDMI DVI 16x Lga1151 mATX

MSI H310M GAMING PLUS DDR4 M.2 HDMI DVI 16x Lga1151 mATX

H310M GAMING PLUS
Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA 1151
Supports DDR4 Memory, up to 2666 MHz
MYSTIC LIGHT Sync: Synchronize other RGB solutions and control all LEDs in one click through Mystic Light APP or a mobile device.
Core Boost: With premium layout and optimized power design to support more cores and provide better performance.
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
M.2 and NVMe support, up to 20 Gb/s using PCI-Express Gen2 x4.
GAMING LAN, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
VR Ready: Best virtual reality game experience without latency, reduces motion sickness.
In-Game Weapons: GAMING Hotkey, X-Boost.
EZ Debug LED: Easiest way to troubleshoot.
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function.
GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players.

Teknik Detaylar

PROCESSOR

Supports 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for Socket LGA1151

CHİPSET

Intel^® H310 Chipset

MEMORY

• 2 x DDR4 memory slots, support up to 32GB
• Supports DDR4 2666/ 2400/ 2133 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory

SLOTS

• 1 x PCIe 3.0 x16 slots
• 2 x PCIe 3.0 x1 slots

ONBOARD GRAPHİCS

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

STORAGE

Intel^® H310 Chipset

• 4 x SATA 6Gb/s ports
• 1 x M.2 slots (Key M)
  • Support up to PCIe 2.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260 /2280 storage devices

USB

Intel^® H310 Chipset

• 4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
• 6x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

AUDİO

Dual Realtek^® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Intel I219-V Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x Front panel audio connector
• 1 x Serial port connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x LED connector
• 1 x Clear CMOS jumper

BACK PANEL PORTS

1. PS/2 Combo Port
2. LAN Port
3. HD Audio Connectors
4. USB 2.0 Port
5. DVI-D Port
6. HDMI
7. USB 3.1 Gen1 Port
8. USB 2.0 Port

DİMENSİONS

• 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
• m-ATX Form Factor

MOUNTİNG

6 mounting holes

BOX CONTENT

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.

1. Özellikler bölgelere göre değişiklik gösterebilir ve önceden haber verilmeksizin değiştirilebilir. Lütfen özellikler konusunda bölgenizdeki satıcı ile temasa geçiniz.
2. Ürün renkleri ekran ayarları ve fotoğraf nedeniyle satılan modelden farklı olabilir.

Garanti Süresi : 36 Ay

EAN Numarası: 4719072562892
