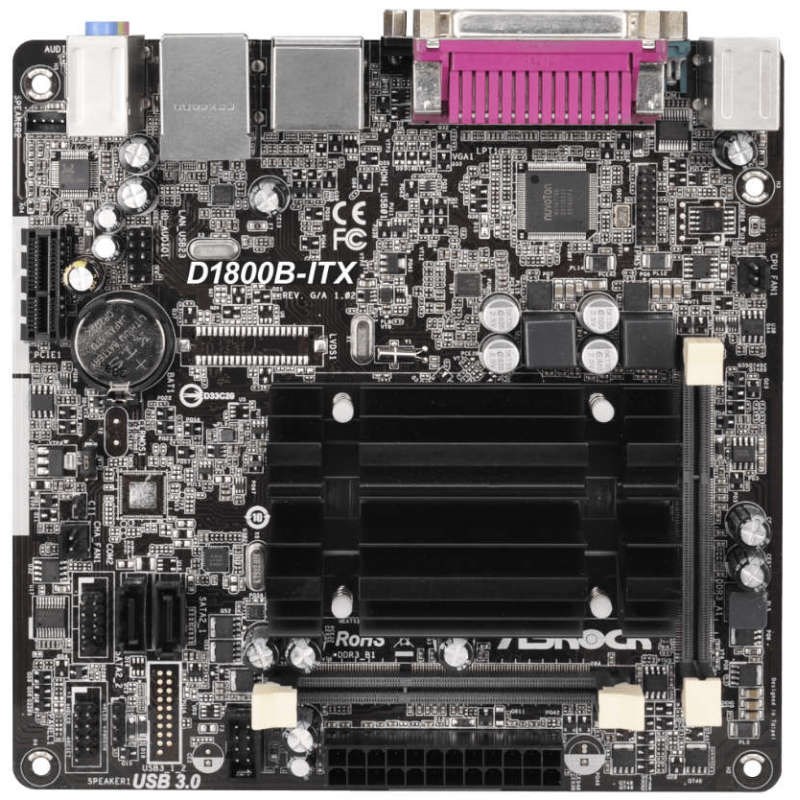

Asrock D1800B-ITX Pentium J1800 DDR3 Usb 3.0 HDMI Vga Mini-ITX

• Unique Feature

  - ASRock Full Spike Protection
  - ASRock Cloud
  - ASRock APP Shop

• CPU

  - Intel^® Dual-Core Processor J1800 (2.41 GHz)

• Memory

  - Dual Channel DDR3/DDR3L Memory Technology
  - 2 x DDR3/DDR3L SO-DIMM Slots
  - Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
  - Max. capacity of system memory: 16GB*


  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

  **If only one SO-DIMM module is installed, please install it into DDR3_A1.

• BIOS

  - 64Mb AMI UEFI Legal BIOS with GUI support
  - Supports Plug and Play
  - ACPI 5.0 Compliant wake up events
  - Supports jumperfree
  - SMBIOS 2.7 Support

• Graphics

  - Intel^® 7^th generation (Gen 7) graphics
  - DirectX 11.0, Pixel Shader 5.0
  - Dual graphics output: Support HDMI and D-Sub ports by independent display controllers
  - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  - Supports HDCP with HDMI Port
  - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

• Audio

  - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  - Supports Surge Protection (ASRock Full Spike Protection)

• LAN

  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111GR
  - Supports Wake-On-WAN
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  - Supports LAN Cable Detection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE

• Slots

  - 1 x PCI Express 2.0 x1 Slot

• Storage

  - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

• Connector

  - 1 x 3W Audio AMP Output Wafer Header
  - 1 x COM Port Header
  - 1 x TPM Header
  - 1 x Chassis Intrusion Header
  - 1 x CPU Fan Connector (3-pin)
  - 1 x Chassis Fan Connector (3-pin)
  - 1 x 24 pin ATX Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

• Rear Panel I/O

  - 1 x PS/2 Mouse Port
  - 1 x PS/2 Keyboard Port
  - 1 x Parallel Port (ECP/EPP Support)
  - 1 x Serial Port: COM1
  - 1 x D-Sub Port
  - 1 x HDMI Port
  - 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

  Software
  - ASRock A-Tuning
  - ASRock USB Key
  - ASRock XFast LAN
  - ASRock XFast RAM
  - ASRock Restart to UEFI
  UEFI
  - ASRock Instant Flash
  - ASRock Internet Flash
  - ASRock Crashless BIOS

• Support CD

  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)

• Accessories

  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables

• Hardware Monitor

  - CPU/Chassis temperature sensing
  - CPU/Chassis Fan Tachometer
  - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
  - CPU/Chassis Fan multi-speed control
  - CASE OPEN detection
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

• Form Factor

  - Mini-ITX Form Factor
  - Solid Capacitor for CPU power
  - High Density Glass Fabric PCB

• OS

  - Microsoft^® Windows^® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

• Certifications

  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

EAN Numarası: 4717677322835
