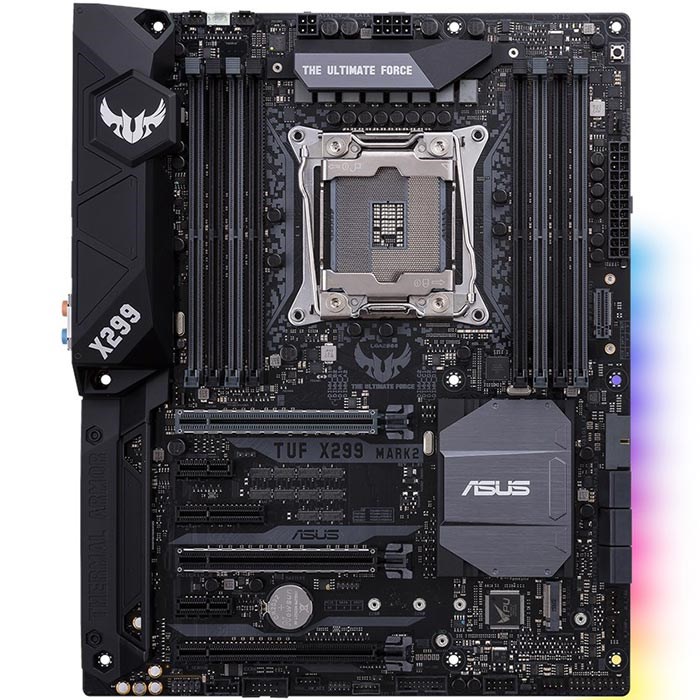

TUF X299 MARK 2
Intel® LGA 2066 ATX motherboard with Thermal Armor, DDR4 4133MHz (OC), dual M.2, Intel VROC support, Intel Optane™ memory-ready, dual Intel Gigabit LAN, USB 3.1 Gen 2

Thermal Radar 3 - Designed to keep systems stable while overclocking, Thermal Radar 3 delivers complete system cooling control and temperature monitoring options
Pro Clock II & T-Topology - Our Pro Clock II technology provides flexibility for fine-tuning system overclocks, while T-Topology enhances memory stability at higher frequencies
TUF components — Certified military-grade caps, chokes & MOSFETs for tough duty
Dual PCI Express® slots — Supports bridging of SLI graphics cards to deliver 1.5x greater transfer bandwidth
ASUS Aura Sync: Synchronize RGB lighting effects across an ever-expanding ecosystem of Aura Sync-enabled products

Teknik Özellikler
CPU : Intel® Socket 2066 Core™ X-Series Processors
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
* Refer to www.asus.com for CPU support list

Chipset : Intel® X299

Memory
Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots
44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
2 x PCIe 3.0 x4 (max at x4 mode) *1

28-Lane CPU-
3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4)
2 x PCIe 3.0 x4 (max at x4 mode) *1

16-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
2 x PCIe 3.0 x4 (max at x4 mode) *1

Storage
Intel® X299 Chipset :
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel Rapid Start Technology*2
Intel® Optane™ Memory Ready

LAN
Intel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN
ASUS Turbo LAN Utility

Audio
Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality

USB Ports
ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (Type-A)
Intel® X299 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
Intel® X299 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

Special Features
OC Design - ASUS PRO Clock Technology

TUF Features:
TUF ENGINE! Power Design :
- 7 +1 Digital Phase Power Design
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
Ultimate COOL! Thermal Solution :
- TUF Thermal Armor
Thermal Radar 3
Safe & Stable! Guardian Angel :
- TUF ESD Guards 2
- TUF LANGuard
AURA :
- Aura Lighting Control
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Turbo LAN

ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Back I/O Ports
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)

Internal I/O Ports
1 x AAFP connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector ()
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x CPU_OV jumper

Accessories
User's manual
ASUS Q-Shield
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)(white)

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating System
Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Garanti Süresi : 60 Ay

Not: Spesifikasyonlar önceden bildirilmeksizin değiştirilebilir.

EAN Numarası: 4712900775174
