MSI A68HM-P33 V2 DDR3 1866MHz DVI Vga 16x FM2+ mAtx

MSI A68HM-P33 V2 DDR3 1866MHz DVI Vga 16x FM2+ mAtx

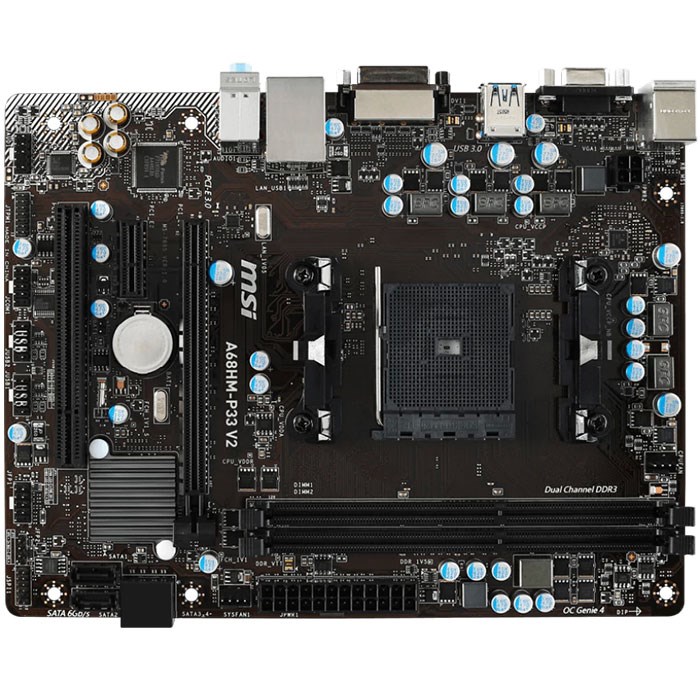

A68HM-P33 V2
Supports AMD® Socket FM2+/FM2 A-Series/Athlon™ Processors
Supports DDR3 Memory
Military Class 4: Top Quality & Stability
Military Class Essentials: Total Protection for Military Class Motherboards
Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds

Teknik özellikler
CPU
• Supports FM2+ Socket for AMD® A-series/ Athlon™ Series Processor

Chipset
• AMD A68H

Main Memory
• 2 x DDR3 memory slots supporting up to 32GB
• Supports DDR3 2133(OC)/ 1866/ 1600/ 1333 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports AMD Memory Profile (AMP)
• Supports Extreme Memory Profile (XMP)

Slots
• 1 PCI Express x16 slot
• 1 PCI Express x1 slot
• 1 PCI slot, Support 3.3V/ 5V PCI bus Interface

VGA
• 1 x VGA port, supporting a maximum resolution of 1920x1200@ 60Hz, 24bpp
• 1x DVI-D port, supporting a maximum resolution of 2560x1600@60Hz, 24bpp/ 1920x1200@60Hz, 24bpp

On-Board SATA
• 4 x SATA 6Gb/s ports
- Supports RAID 0, RAID1 and RAID 10

USB
• 2 x USB 3.0 ports on the back panel
• 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio
• Realtek® ALC887 Codec
• Flexible 8-channel audio with jack sensing
• Compliant with Azalia 1.0 Spec

LAN
• Realtek® RTL8111G Gigabit LAN

Back Panel I/O Ports
- 1 PS/2 mouse port
- 1 PS/2 keyboard port
- 1 VGA port
- 1 DVI port
- 2 USB 2.0 ports
- 2 USB 3.0 ports
- 1 LAN(RJ45)port
- 3 x audiojacks

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x4-pin system fan connector
- 1 x Front panel audio connector
- 2 x system panel connector
- 1 x Chassis intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Clear CMOS jumper

Dimension
• Micro-ATX 22.6 cm x 17.3 cm

Mounting
• 6 mounting holes

Garanti Süresi : 36 Ay

EAN Numarası: 4719072401955
