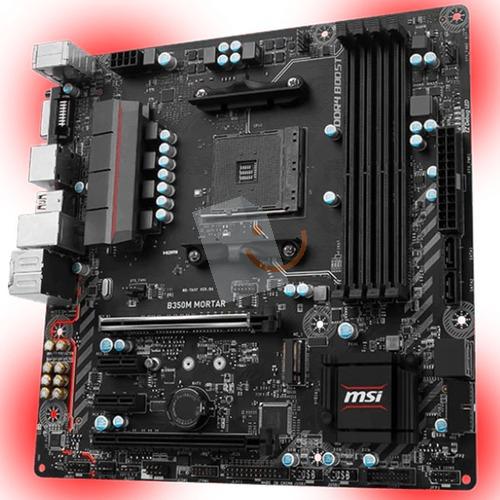

MSI B350M MORTAR DDR4 M.2 HDMI DVI DP Led 16x Ryzen AM4 mATX

MSI B350M MORTAR DDR4 M.2 HDMI DVI DP Led 16x Ryzen AM4 mATX

B350M MORTAR

Supports AMD® RYZEN Series processors and 7th Gen A-series / AthlonTM Processors for socket AM4
Supports DDR4-3200+(OC) Memory
DDR4 Boost: Give your DDR4 memory a performance boost
VR Ready: Best virtual reality game experience without latency
GAMING LEDs: Ambient LED lights for an awesome look & feel
Lightning Fast Game experience: Turbo M.2
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
GAMING LAN with LAN Protect: The best online gaming experience with lowest latency and bandwidth management
Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster
EZ Debug LED: Easiest way to troubleshoot
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players
WHQL certified for Windows 10

Teknik özellikler
CPU
• Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
* This function will be supported depend on the CPU.

Chipset
• AMD® B350 Chipset

Main Memory
• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
* 7th Gen A-series/ Athlon ™ processors support a maximum of 2400 MHz. Please refer www.msi.com for more information on compatible memory.

Slots
• 1 x PCIe 3.0 x16 slot
- RYZEN series processors support x16 mode
- 7th Gen A-series/ Athlon™ processors support x8 mode
• 1 x PCIe 2.0 x16 slot (supports x4 mode)
• 2 x PCIe 2.0 x1 slots*

Onboard Graphics
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@24Hz*
• 1 x DisplayPort, supports a maximum resolution of 4096x2160@60Hz*
* Maximum shared memory of 2048 M

Multi-GPU
• Supports 2-Way AMD® CrossFire™ Technology
- RYZEN series processors support x16/x4 mode
- 7th Gen A-series/ Athlon™ processors support x8/x4 mode

Storage

• AMD® B350 Chipset
• 4 x SATA 6Gb/s ports*
• 1 x M.2 slot (Key M)
- M2_1 slot supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) and SATA 6Gb/s 2242/ 2260 /2280 storage devices
• Supports RAID 0, RAID 1, RAID 10

USB
• AMD® B350 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
• AMD® CPU - 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A and 1 Type-C ports on the back panel)

Audio
• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio

LAN
• 1 x Realtek® 8111H Gigabit LAN controller

Internal I/O Connectors
- 1 x 24-pin ATX 12V power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 3 x 4-pin system fan connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper

Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DVI-D port
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 3 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen1 Type-C port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector

Dimension
• 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
• Micro-ATX Form Factor

Mounting
• 8 mounting holes

Garanti Süresi : 36 Ay

EAN Numarası: 4719072512286
