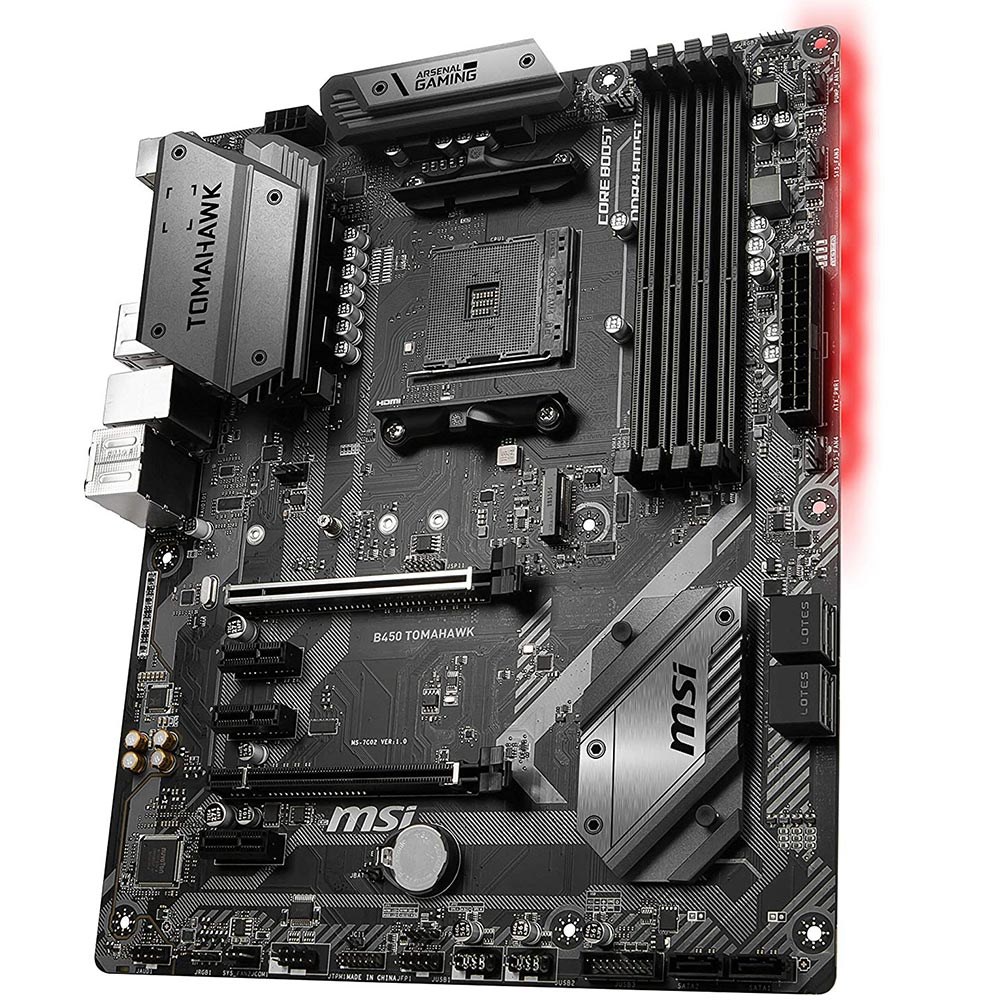

MSI B450 TOMAHAWK DDR4 M.2 HDMI DVI RGB LED 16x AM4 ATX

MSI B450 TOMAHAWK DDR4 M.2 HDMI DVI Mystic Light 16x AM4 ATX

B450 TOMAHAWK
Supports AMD Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4
Supports DDR4 Memory, up to 3466+(OC) MHz
Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.1 GEN2, Store MI technology
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
DDR4 Boost:Advanced technology to deliver pure data signals for the best gaming performance and stability.
MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
Audio Boost:Reward your ears with studio grade sound quality for the most immersive audio experience.
Mystic Light and Mystic Light Sync: 16.8 million colors / 10 effects in one click. Synchronize RGB strips and other RGB solutions for customization.
VR Ready: Best virtual reality game experience without latency, reduces motion sickness
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
EZ Debug LED: Easiest way to troubleshoot
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

Teknik Özellikler

PROCESSOR

Support AMD^® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4

CHİPSET

Intel^® B450 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
• Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
• Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports ECC UDIMM memory (non-ECC model)

SLOTS

• 1 x PCIe 3.0 x16 slot (PCI_E1)
  • Supports x16 speed with AMD^® Ryzen™ 1st and 2nd Generation processors
  • Supports x8 speed with AMD^® Ryzen™ with Radeon Vega Graphics processors
• 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
• 3 x PCIe 2.0 x1 slots

1. PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.

ONBOARD GRAPHİCS

• 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz

1. Only support when using AMD^® Ryzen™ with Radeon Vega Graphics Processors
2. Maximum shared memory of 2048 MB

MULTİ-GPU

• Supports 2-Way AMD^® CrossFire™ Technology

STORAGE

AMD^® CPU

• 2 x SATA 6Gb/s ports
• 1 x M.2 slot (Key M)
  • Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices

AMD^® B450 Chipset

• 4 x SATA 6Gb/s ports

1. SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

RAID

AMD^® B450 Chipset

• Supports RAID 0, RAID1 and RAID 10 for SATA storage devices

USB

AMD^® B450 Chipset

• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD^® CPU

• 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDİO

Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek^® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump-fan connector
• 4 x 4-pin system fan connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Serial Port connector
• 1 x Clear CMOS jumper
• 2 x 5050 RGB LED strip 12V connectors

BACK PANEL PORTS

1 - BIOS FLASHBACK+ Button
2- PS/2 Combo Port
3- USB 3.1 Gen1
4- LAN Port
5- HD Audio Connectors
6- USB 2.0 Port
7- DVI-D Port
8- HDMI Port
9- USB 3.1 Gen2 Type A+C

DİMENSİONS

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

MOUNTİNG

9 mounting holes

OPERATİNG SYSTEM

• Support for Windows^® 10 64-bit
• Support for Windows^® 7 64-bit

* To support Windows^® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

BOX CONTENT

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.

1. Özellikler bölgelere göre değişiklik gösterebilir ve önceden haber verilmeksizin değiştirilebilir. Lütfen özellikler konusunda bölgenizdeki satıcı ile temasa geçiniz.
2. Ürün renkleri ekran ayarları ve fotoğraf nedeniyle satılan modelden farklı olabilir.

Garanti Süresi : 36 Ay

EAN Numarası: 4719072587048
