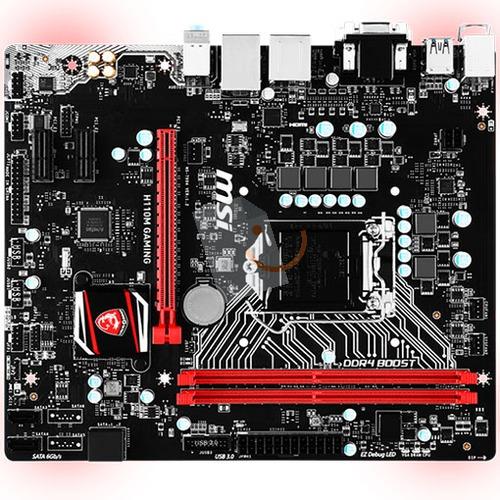

MSI H110M GAMING DDR4 USB 3.1 DVI HDMI Vga 16x Lga1151 mATX

MSI H110M GAMING DDR4 USB 3.1 DVI HDMI Vga 16x Lga1151 mATX

H110M GAMING

Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
Supports DDR4-2133 Memory
DDR4 Boost: Give your DDR4 memory a performance boost
SATA 6Gb/s + USB 3.1 Gen 1
GAMING DNA: Awesome look & feel with stylish red led
GAMING LAN powered by Intel® : The best online gaming experience with lowest latency
LAN Protect: 15KV Anti-surge protection
Audio Boost: Reward your ears with studio grade sound quality
Military Class 4: Top Quality & Stability
Guard-Pro: Improved Protection and Power Efficiency
OBS Streaming software: Share your gaming achievements with the world!
Game Boost: Generate more FPS in games with 1 push of a button
EZ Debug LED: Easiest way to troubleshoot
Overvoltage Protection:Prevent Unforeseen Damage
GAMING Hotkey: Launch your favorite games with a single button
Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font
SteelSeries Certified: Optimized for SteelSeries gaming gear
GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience

Teknik özellikler
CPU
• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset
• Intel® H110 Chipset

Main Memory
• 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2133 MHz *
• Dual channel memory architecture
* Please refer to www.msi.com for more information on compatible memory.

Slots
• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots

Onboard Graphics
• 1x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1x VGA port, supports a maximum resolution of 1920x1200@60Hz

Storage
• Intel® H110 Chipset
• 4 x SATA 6Gb/s ports

USB
• Intel® H110 Chipset
• 6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USBconnector)
• 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio
• Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio

LAN
• 1 x Intel I219V Gigabit LAN controller

Internal I/O Connectors
- 1x 24-pin ATX main power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1x 4-pin CPU fan connector
- 2x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x Front panel connectors
- 1x TPM module connector
- 1x Serial port connector
- 1x Parallel port connector
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper

Back Panel I/O Ports
- 1x PS/2 keyboard port
- 1 x PS/2 mouse port
- 2 x USB 2.0 ports
- 4 x USB 3.1 Gen1 ports
- 1 x DVI-D port
- 1 x HDMI™ port
- 1x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks

Dimension
• 9.6 in. x 8.1 in. (24.3 cm x 20.6 cm)
• mATX Form Factor

Mounting
• 6 mounting holes

Garanti Süresi : 36 Ay

Notlar :
1. özellikler bölgelere göre değişiklik gösterebilir ve önceden haber verilmeksizin değiştirilebilir. Lütfen özellikler konusunda bölgenizdeki satıcı ile temasa geçiniz.
2. ürün renkleri ekran ayarları ve fotoğraf nedeniyle satılan modelden farklı olabilir.

EAN Numarası: 4719072448578
