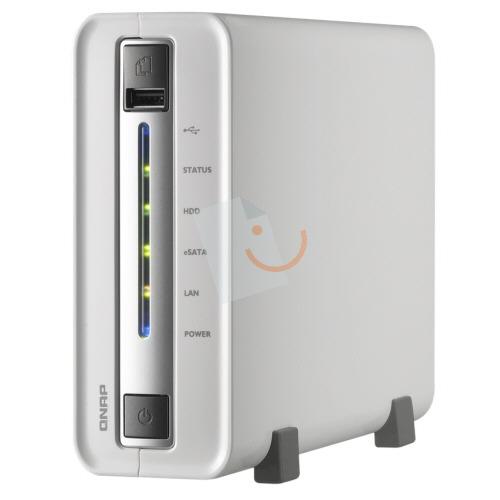

QNAP TS-112P NAS Depolama Ünitesi

QNAP TS-112P NAS Depolama ünitesi

CPU Marvell 6282 1.6GHz
DRAM 512MB DDR3 RAM
Flash Memory 16MB
Hard Disk Drive 1 x 3.5" SATA I/II hard disk drive (HDD)
NOTE:
The system is shipped without hard disk drives.
LAN Port 1 x Gigabit RJ-45 Ethernet port
LED Indicators USB, Status, HDD, eSATA, LAN, Power
USB 1 x USB 2.0 port (front: 1), 2 x USB 3.0 port (back: 2)
Support USB printer, pen drive, USB hub, and USB UPS etc.
Buttons System: Power button, One touch copy button, Reset button
Alarm Buzzer System warning
Form Factor Portable
Dimensions 165.5 (H) x 60 (W) x 218.4 (D) mm
6.52 (H) x 2.36 (W) x 8.60(D) inch
Weight Net weight (NAS only) : 0.79 kg/1.74 lb
Gross weight (with packing and accessories) : 1.60 kg/3.53 lb
Power Consumption (W) Sleep mode: 5W
In operation: 7W
(with 1 x 500GB HDD installed)
Temperature 0-40°C
32-104°F
Humidity 5~95% RH non-condensing, wet bulb: 27?C
Power Supply External Power Adapter, 36W, 100-240V

QTS 4.0 Home NAS Applications

Operating System QTS 4.0

Supported Clients
Windows 8 (32/64-bit), Vista, Windows 7 (32/64-bit), Windows XP, Windows Server 2003/2008 R2/2012
Apple Mac OS X
Linux & UNIX

Supported Browsers
Microsoft Internet Explorer 8, 9, 10
Mozilla Firefox 8+
Apple Safari 4+
Google Chrome

File System
Internal Hard Drive: EXT3, EXT4
External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+

Networking
TCP/IP (IPv4 & IPv6: Dual Stack)
Proxy Client, proxy server
DHCP Client, DHCP Server
Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
TFTP Server with PXE Booting
UPnP & Bonjour Discovery
USB Wi-Fi Adapter Support

Backup Solution
Real-time Remote Replication (RTRR)
Works as Both RTRR Server & Client with Bandwidth Control
Real-time & Scheduled Backup
Encryption, Compression, File Filter, and Transfer Rate Limitation
Block-level Remote Replication
Works as Both Rsync Server & Client with Bandwidth Control
Encrypted Replication between QNAP NAS Servers
Desktop Backup by QNAP NetBak Replicator for Windows
Apple Time Machine Support with Backup Management
Data Backup to Multiple External Storage Devices
Data Backup to Cloud Storage (Amazon S3, ElephantDrive, Symform, and Google Drive)

Security
IP Filter and Policy-based Automatic IP Blocking
Network Access Protection with Auto-blocking: SSH, Telnet, HTTP (S), FTP, CIFS/SMB, AFP
Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication between QNAP NAS Servers (Rsync over SSH)
CIFS Host Access Control for Shared Folders
Antivirus Protection
Importable SSL Certificate
Instant Alert via E-mail, SMS, Instant Messaging (Windows Live), and Beep.

Disk Management
Single Disk
Bad Block Scan and Hard Drive S.M.A.R.T.
RAID Recovery
Bitmap Support

iSCSI (IP SAN)
iSCSI Target with Multiple LUNS per Target (Up to 256 Targets/LUNs Combined)
LUN Mapping & Masking
Online LUN Capacity Expansion
Supports SPC-3 Persistent Reservation
Supports MPIO & MC/S
iSCSI LUN Backup, One-time Snapshot, and Restore
iSCSI Connection and Management by QNAP Finder (Windows)
Stack Chaining Master: Up to 8 Virtual Disk Drives (via iSCSI Initiator)

Server Virtualization & Clustering
Supports VMware vSphere (ESX/ESXi 4.x, ESXi 5.x)
Supports Citrix XenServer 5.x, 6.x
Supports Windows Server 2008 R2 and Windows Server 2012 Hyper-V
Supports Windows Server 2008 R2 and Windows Server 2012 Failover Cluster

Power Management
Wake on LAN
Internal Hard Drive Standby Mode
Scheduled Power on/off (Max 15 Settings)
Automatic Power on after Power Recovery
USB and Network UPS Support with SNMP Management

Access Right Management
Max No. of Users: 2,048
Max No. of User Groups: 256
Max No. of Network Shares: 256
Batch Users Creation
Import/Export Users
User Quota Management
Local User Access Control for CIFS, AFP, FTP, and WebDAV,
Application Access Control for Photo Station, Music Station, and Video Station
Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and File Station

Domain Authentication Integration
Microsoft Active Directory (AD)
LDAP Server
LDAP Client
Domain Users Login via CIFS/SMB, AFP, FTP, and Web File Manager

myQNAPcloud Service
Private Cloud Storage and Sharing
Free Host Name Registration (DDNS)
Auto Router Configuration (via UPnP)
CloudLink for Easy VPN Connection (Windows VPN Utility)

Storage Plug & Play
Windows Software: QNAP Finder
Create and Map Shared Folders
Create and Connect to iSCSI Target/LUN

Web Administration
Smart Fan Control
Dynamic DNS (DDNS)
SNMP (v2 & v3)
Resource Monitor
Network Recycle Bin for File Deletion via CIFS/SMB and AFP
Automatic Cleanup
File Type Filter
Comprehensive Logs (Events & Connection)
Syslog Client
Firmware Live Update
System Settings Backup and Restore
Restore to Factory Default
Mobile App Qmanager for Remote Monitoring

Multilingual Support
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

Secure Design K-lock security slot for theft prevention
Fan 1 x quiet cooling fan (4 cm, 12V DC)

Garanti Süresi: 24 Ay
